Thin film solar cell

Thin film solar cells -- photovoltaic industry -- YMUS ultrasonic spraying

Industrial silicon is the core raw material of silicon energy industry chain, including crystalline silicon photovoltaic industry chain, organosilicon industry chain and aluminum alloy industry chain, which are related to new energy and green and low-carbon development. With the rapid development of the photovoltaic industry chain and the steady growth of the organic silicon industry chain, the industrial silicon industry has ushered in a new period of rapid development.

Photovoltaic industry chain from raw materials to terminal applications, the main core links include industrial silicon, polysilicon, silicon wafers, cells, modules, photovoltaic power stations. The whole photovoltaic industry is divided according to the traditional industry, and different links belong to different industries.

Ultrasonic spraying technology deposited the anti-reflection layer, TCO coating, buffer coating, PEDOT and the active layer in the manufacture of thin film and perovskite solar cells. OPV, CIG, CdTE, CzT, perovskite and DSC are some of the solutions and suspensions that can be deposited using ultrasonic spraying techniques in thin film solar cell manufacturing. YMUS ultrasonic atomizer series reduces the cost of manufacturing thin film solar cells while providing high cell efficiency.

YMUS ultrasonic spraying technology, suitable for high yield and large area coated thin film solar cells manufacturing. YMUS-ZM100 online spraying system, a mass-produced automatic ultrasonic spraying equipment, can be equipped with wide spray ultrasonic nozzle, and can be equipped with multiple nozzle parallel work. The on-line spraying system is also equipped with a unique precision constant current metering pump system, which can realize 24 hours uninterrupted steady constant liquid supply. Optional configuration of carrier gas control, base heating, vacuum adsorption, exhaust system and other auxiliary devices, especially suitable for mass production and large area film production and preparation.

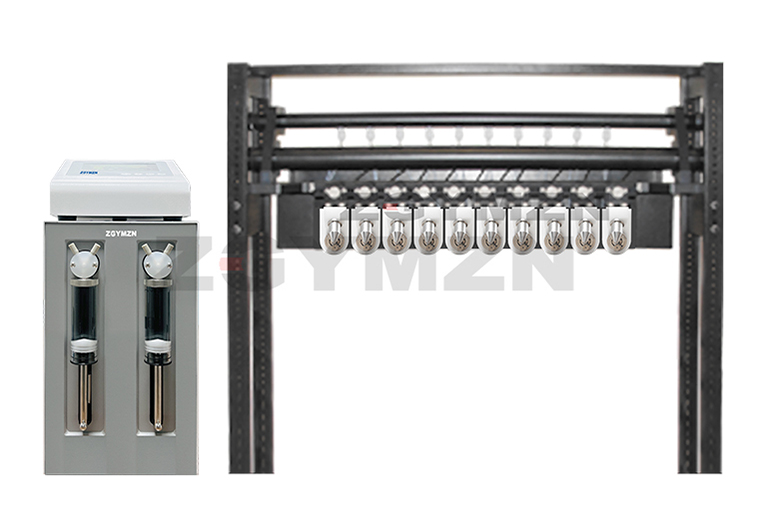

Note: YMUS-ZX1000 On-line spray machine

  Device Features

◆ Can be integrated to various fields of industrial assembly line installation;

◆ Can be matched with large width nozzle, uniform coverage of large area of substrate;

◆ Can be equipped with multiple nozzle array, greatly improve the production speed;

◆ Spraying uniformity: >95%;

◆ Solution conversion rate: ≥95%, 4 times traditional two-fluid spraying;

◆ Full color touch screen control and friendly man-machine interaction interface;

◆ A variety of high precision constant current liquid supply system to match different production capacity and different process needs;

◆ No clogging nozzle technology, low maintenance cost;

◆ Ultrasonic dispersed liquid storage barrel and ultrasonic dispersed syringe to avoid solid precipitation during spraying; (extensible)

◆ Liquid level alarm system;

  Application

◆ New energy: fuel cell, membrane electrode, thin film solar cell, proton exchange membrane, etc;

◆ Medical treatment: balloon catheter, blood collection syringe, stent, biosensor, microfluidic chip, etc;

◆ Microelectronics semiconductor electronics: flux, photoresist coating, conductive coating, hydrophilic and hydrophobic coating, etc;

◆ Glass production: glass coating, float glass, photovoltaic glass, photoresistance film, transparent conductive, etc;

◆ Nanotechnology: carbon nanotube, polymer fiber, nano-film, etc;
